Platisil NH₂ columns retain hydrogen-bonding compounds under three separation modes – RP, NP, and IC. Platisil NH₂ columns provide reproducible retention and selectivity with improved column lifetime.

Features of Platisil™ NH₂ Columns

·  Aminopropyl modified silica phase for multi-mode chromatography (RP, NP, &IC)
·  Improved phase ruggedness and stability
·  Excellent retention for polar compounds such as sugars, oligosaccharides, sugar alcohols, and other hydroxyl compounds, as well as DNA bases under RP conditions and vitamins A & D and hydrocarbons in the petroleum industry under NP conditions

Platisil™ NH₂ Material Characteristics

Bonded phase	Particle size(μm)	Pore size(Å)	Surface area(m²/g)	Purity(%)	Phase density(µmol/m²)	Carbon loading(%)	pH range	Endcapping
NH₂	3, 5, 10	100	440	>99.999	3.2	7	2.0-7.5	No

Sugars

Column:	Platisil^TM NH₂250 × 4.6 mm, 5 µm
Cat. No.:	99505
Mobile Phase:	MeCN:H₂O= 75:25
Flow Rate:	1.0 mL/min
Detection:	RI
Temperature:	40 ºC
Sample:	1. Fructose 4. Maltose
	2. Glucose 5. Lactose
	3. Sucrose

Sugar alcohols

Column:	Platisil^TM NH₂250 × 4.6 mm, 5 µm
Cat. No.:	99505
Mobile Phase:	MeCN:H₂O= 85:15
Flow Rate:	1.0 mL/min
Detection:	RI
Temperature:	40 ºC
Sample:	1. meso-Erythritol 4. Sorbitol
	2. Xylitol 5. Mannitol
	3. Fructose

Malto oligosugars

Column:	Platisil^TM NH₂250 × 4.6 mm, 5 µm
Cat. No.:	99505
Mobile Phase:	MeCN:H₂O= 55:45
Flow Rate:	1.0 mL/min
Detection:	RI
Temperature:	40 ºC
Sample:	1. Maltose 4. Maltopentaose
	2. Maltotriose 5. Maltoheptaose
	3. Maltotetraose

Nucleic acid bases

Column:	Listed on chromatograms
Dimension:	150 × 4.6 mm, 5 µm
Mobile Phase:	MeCN:20 mM ammonium formate= 80:20
Flow Rate:	1.0 mL/min
Detection:	UV 254 nm
Temperature:	Ambient
Sample:	1. Thymine 3. Adenine
	2. Uracil 4. Cytosine

Dikma Platisil NH₂(Cat#: 99504)

Agilent Polaris NH₂

Water-soluble vitamins

Column:	Listed on chromatograms
Dimension:	150 × 4.6 mm, 5 µm
Mobile Phase:	MeCN:25 mM KH₂PO₄ (pH=2.5) = 70:30
Flow Rate:	1.0 mL/min
Detection:	UV 254 nm
Temperature:	Ambient
Sample:	1. Riboflavin 3. Pyridoxine
	2. Nicotinamide 4. Thiamine

Dikma Platisil NH₂ (Cat#: 99504)

GL Inertsil NH₂

Phenomenex Luna NH₂

Salicylic acids

Column:	Listed on chromatograms
Dimension:	150 × 4.6 mm, 5 µm
Mobile Phase:	MeCN:20 mM CH₃COONH₄ (pH=6.8) = 80:20
Flow Rate:	1.0 mL/min
Detection:	UV 228 nm
Temperature:	Ambient
Sample:	1. Salicylamide 3. 4-Aminosalicylic acid
	2. Salicylic acid 4. Acetylsalicylic acid

Dikma Platisil NH₂(Cat#: 99504)

GL Inertsil NH₂

Phenomenex Luna NH₂

Steroids

Column:	Listed on chromatograms
Dimension:	150 × 4.6 mm, 5 µm
Mobile Phase:	Hexane:Ethanol = 90:10
Flow Rate:	2.0 mL/min
Detection:	UV 254 nm
Temperature:	Ambient
Sample:	1. 11-Ketoprogesterone	6. Cortisone
	2. Progesterone	7. Prednisone
	3. Cortisone 21-acetate	8. Hydrocortisone
	4. Prednisolone 21-acetate	9. Prednisolone
	5. Corticosterone	10. Dexamethasone

Dikma Platisil NH₂(Cat#: 99504)

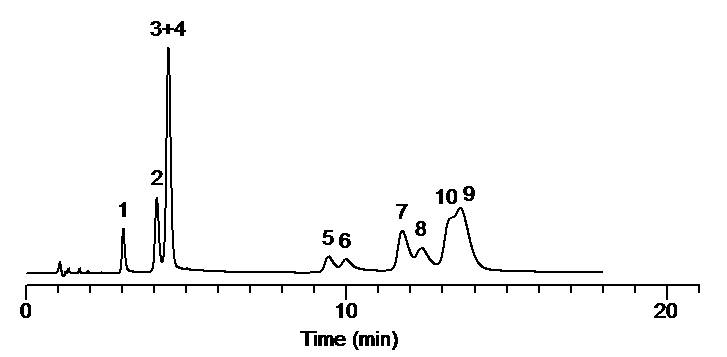

GL Inertsil NH₂

Phenomenex Luna NH₂

EasyGuard™ Columns

• Universal design to match any brand column
• A variety of optional bonded phase material
• Does not affect the analytical column resolution
• Long lifetime column cartridges, high performance and low price

Balance

Guard columns provide protection against contamination with minimal impact on column efficiency. The column diameter determines both the sample loadability and column efficiency. A small diameter will decrease the column lifetime, but a large diameter will adversely affect column resolution. EasyGuard™ columns effectively profect the analytical column without adversely affecting the resolution or column lifetime.

Simple to Use

• Flexibility to move PEEK fittings
• Matches any brand analytical column
• Low dead volume connection
• Rugged 316 stainless steel column holder

Easy-Lok™ Coupler ^New!

When the EasyGuard™ guard column connects to a 250 mm analytical column, it can not fit in certain ovens (such as Agilent 1200) because the length is not long enough. The Easy-Lok™ coupler resolves this issue by removing the pre-tightened connecting pipe by wrench before using.
